Merkle Tree

The concept of a Merkle Tree as a binary authentication tree was introduced in [MER79].

• A Merkle Tree is a binary authentication tree built over a set of $n$ values, $Y_1 \ldots Y_n$.
• These $Y$ may be chunks of data we need to authenticate (perhaps in a Bitcoin chain), or OTS public keys we may want to publish as part of a larger scheme.
• The parent of each leaf $Y_i$ is the hash of that value, $H(Y_i)$.
• Each node in the binary tree is the hash of the values of both its children.
  • node = H(leftchild || rightchild)
• The value of the root node is published as a public authentication value.

Merkle Tree with $n=8$

Authenticating the leaf values

• If we know all the values, $Y_1 \ldots Y_n$, we can reconstruct the tree and compare the resulting root value with the published value.
• But this means an end user needs to store all the values, $Y_1 \ldots Y_n$
• What if we just need to verify one value, say $Y_5$?
• To do this we actually only need the values of the nodes at $C$, $6$ and $1$ (shown shaded in the diagram above).
• Along with the value of $Y_5$ we can use these 3 values to compute the root value and compare to the published value.
• We call this an authentication path.
• Note we require the value of exactly one node at each level to do this.
• That means if we have $n$ leaves, the authentication path will consist of $\log_2(n)$ values, e.g. $\log_2(8) = 3$

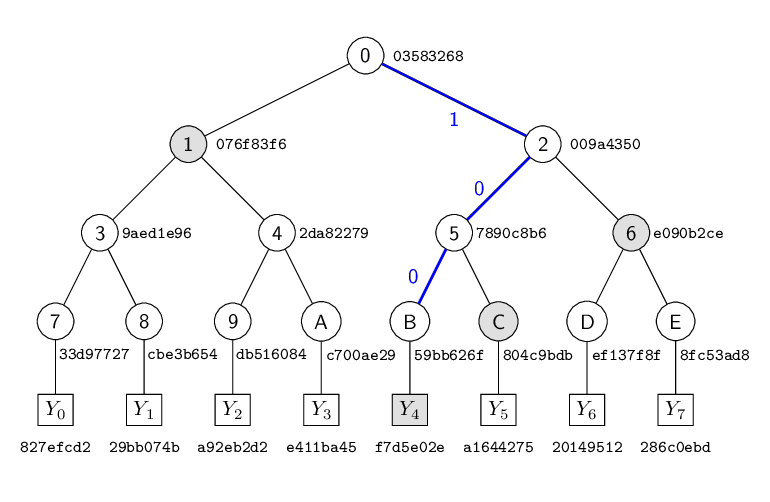

Example Merkle Tree

• Here is a simple example of a Merkle tree. To make the representation of the tree manageable, we cheat and simplify the hash function so it only outputs a digest value of 4 bytes. This is obviously not secure, but it makes displaying the results less cumbersome, and still shows the underlying concept.

• In this example, we have eight key values, $Y_0,\ldots,Y_7$, each 4 bytes long represented in hexadecimal. (Note index-0 this time)

• The leaf nodes (7-E) contain the 4-byte hash of the keys.

• Each internal node contains the hash of its left and right child node value.

• The authentication path for $Y_4$ is C $\rightarrow$ 6 $\rightarrow$ 1.

• The path from the root to the leaf with index 4 (binary 100) is shown in blue. The index value in binary is interpreted bit-by-bit, going to the left child if the bit is zero and to the right child if the bit is one.

• The authentication path consists of the siblings of the nodes on the path to the leaf.

Calculations for example Merkle tree

Our special "weak" hash function $H$ is defined in Python as follows. (Note that the hash digests are computed over the decoded binary values of the hex strings.)

import hashlib
def H(val: str) -> str:
    """Weak hash function returning hex-encoded 4-byte hash."""
    return hashlib.sha256(bytes.fromhex(val)).hexdigest()[:8]

Some sample calculations.

B = H(Y_4) = H(f7d5e02e) = 59bb626f
5 = H(B||C)
  = H(59bb626f || 804c9bdb) = 7890c8b6
2 = H(5||6)
  = H(7890c8b6 || e090b2ce) = 009a4350
root, 0 = H(1||2)
  = H(076f83f6 || 009a4350) = 03583268

• The authentication path for leaf $Y_4=\texttt{f7d5e02e}$ is
  • $C = \texttt{804c9bdb}$
  • $6 = \texttt{e090b2ce}$
  • $1 = \texttt{076f83f6}$
• The path can be verified by showing that
  • $H(1 \parallel H(H(H(Y_4)\parallel C) \| 6)) = \text{root}$
  • There is a neat way to do this using binary numbers shown in the Python code below.

Python code

# Required root value in Merkle tree
root = "03583268"
# Authentication path
authpath = [
"804c9bdb",
"e090b2ce",
"076f83f6",
]
print("authpath=", [x for x in authpath])
# Known key value
sk = "f7d5e02e" # Y_4
print(f"key={sk}")

# Compute leaf value above sk
idx = 4  # 0-based index of Y_4
node = H(sk)  # leaf node

for ap in authpath:
    print(f"idx={idx}")
    # Get last bit of child idx
    lastbit = idx & 1
    # Move up to next level
    idx >>= 1
    print(f"child node={node}")
    print(f"authpath={ap}")
    # Last bit of child determines left/right order of authpath
    if (lastbit):
        print(f"m1,m2={ap} {node}")
        node = H(ap + node)
    else:
        print(f"m1,m2={node} {ap}")
        node = H(node + ap)
    print(f"node={node}")

print(f"Required root={root}")
assert(root == node)

authpath= ['804c9bdb', 'e090b2ce', '076f83f6']
key=f7d5e02e
idx=4
child node=59bb626f
authpath=804c9bdb
m1,m2=59bb626f 804c9bdb
node=7890c8b6
idx=2
child node=7890c8b6
authpath=e090b2ce
m1,m2=7890c8b6 e090b2ce
node=009a4350
idx=1
child node=009a4350
authpath=076f83f6
m1,m2=076f83f6 009a4350
node=03583268
Required root=03583268

Benefits of using a Merkle Tree

• The issuer can publish a single root value as a "trusted" authentication value for the $n$ leaves.

• The issuer can publish a single leaf value along with its authentication path.

• A verifier can recompute and check that the authentication path results in the "trusted" root value.

A warning about Merkle trees

• See Bitcoin vulnerability (CVE-2012-2459) a vulnerability if the number of hashes in the list at a given level is odd.

• Hint: Merkle trees work most efficiently (and safely) if they are perfect. In a perfect tree, all internal nodes have two children and all leaves are at the same level. A perfect Merkle tree of height $h$ has exactly $2^h$ leaf nodes. This avoids the Bitcoin vulnerability above.
  • Some authors use the word complete, but not all definitions of "complete" mean "perfect" as described above.
